1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

Brand Name : ZEMIC

Model Number : H8C

Certification : OILM,NTEP,CE,ROHS

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : large quantity

Delivery Time : 5~15 days

Packaging Details : carton

Material : Alloy steel plated with nickel

Capacity : 0.5/1/2/2.5/3/4/5/6/7.5T

Type : Shear beam

IP : IP67

Cable length : 4m or 6m

Wiring : 4-wires

Contact Now

Shear Beam Alloy Steel Load Cell ZEMIC H8C

Features:

* Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
* Adhesive sealed
* Suitable platform weighing, bed weighing, etc.
* High accuracy
* High reliability
* Current calibrated (sc-option)

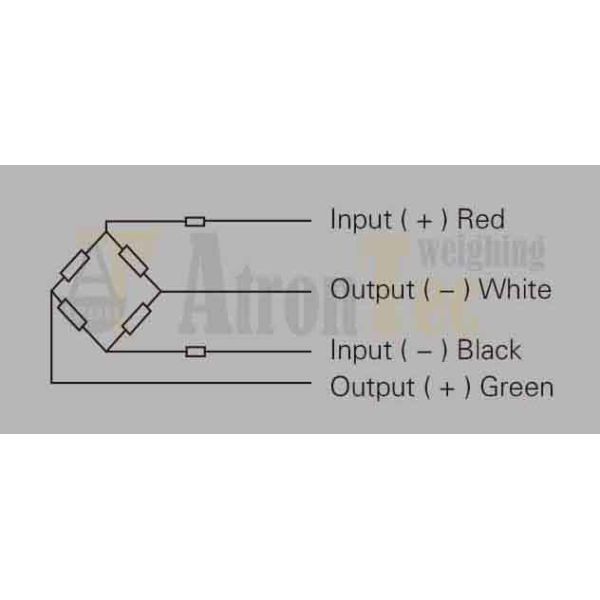

Wiring:

- Shielded, 4 conductor cable
- Cable diameter: Φ5mm.
- Standard cable length for 100kg - 2t: 4m and 6m for the higher capacities.
- Shield in not connected to the element.

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

Specifications:

Maximum capacity ( Emax ) t 0.5/1/2/2.5/3/4/5/6/7.5
klb 1/1.5/2/2.5/3/4/5/7.5/10/20
Accuracy class C3 C4 C5 A5M B10M
Approvals OIML R60 C3 OIML R60 C4 OIML R60 C5 Ⅲ 5000 Multiple Ⅲ L 10000 Multiple
Maximum number of load cell intervals ( nLC ) 3000 4000 5000 5000 10000
Ratio of minimum LC verification interval Y=Emax/vmin 10000 14000 18000 15000 10000
Combined error %FS ±0.020 ±0.018 ±0.010 ±0.0267 ±0.050
Creep %FS/30min ±0.016 ±0.012 ±0.010 ±0.017 ±0.040
Temperature effect on sensitivity %FS/10℃ ±0.011 ±0.009 ±0.008 ±0.013 ±0.040
Temperature effect on zero %FS/10℃ ±0.015 ±0.010 ±0.007 ±0.014 ±0.020
Output sensitivity ( = FS ) mV/V 3.0±0.003 2.0±0.002
Input resistance Ω 350±3.5
Output resistance Ω 350±3.5
Insulation resistance MΩ ≥ 5000(50VDC)
Zero balance %FS ±1.0
Compensated temperature ℃ -10～+40
Operating temperature ℃ -35 ～ +70
Excitation, recommended voltage V 5 ～ 12(DC)
Excitation maximum V 18(DC)
Safe overload %FS 150
Ultimate overload %FS 300
Recommended torque on fixation N.m M12: 100, M18: 200, M24: 700
Ingress protection (according to EN 60529) IP67
ATEX classification (optional) Operating temperature ℃ -20 ～ +40
II1G Ex ia II1C T4 II1D Ex iaD20 T73℃ II3G Ex nL II C T4
"S1" Output Sensitivity is 2.0±0.002MV/V

Dimensions:

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell

1T Load Cell Module Nickel Plated IP67 Shear Beam Load Cell
